Description

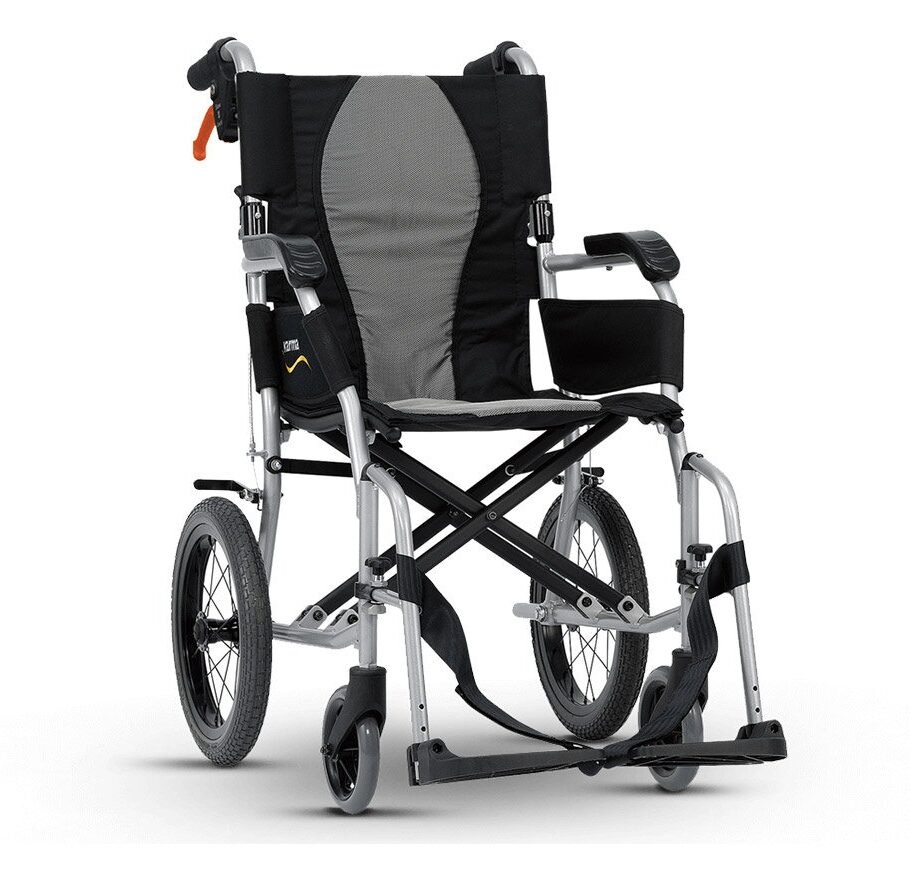

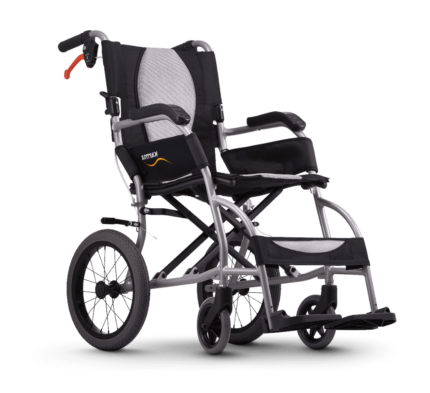

| Product Model | Ergo Lite 2 (KM-2512) | |||
| Nominal Seat Width (inch) | 16 | 18 | 16 | 18 |
| Caster x Rear wheel size (in) | 6 x 14 | 6 x 20 | ||
| Maximum user weight (kg) | 100 | 100 | 100 | 100 |
| Overall length with legrest (mm) | 935 | 935 | 930 | 930 |
| Overall Width (mm) | 570 | 615 | 595 | 645 |
| Overall Height (mm) | 900 | 900 | 900 | 900 |
| Folded Length (mm) | 635 | 635 | 695 | 695 |
| Folded Width (mm) | 280 | 295 | 280 | 295 |
| Folded Height (mm) | 700 | 710 | 700 | 710 |
| Total Mass (kg) | 9.2 | 9.3 | 10.7 | 10.9 |
| Mass of Heaviest Part (kg) | 8.1 | 8.3 | 6.7(20Q) 9.7(20F) |
6.7(20Q) 9.8(20F) |
| Hand rim diameter (mm) | N/A | N/A | 430 | 430 |
| Horizontal location of axle (mm) | twenty | twenty | 5 | 5 |
| Minimum turning radius (mm) | 810 | 838 | 820 | 840 |
| Minimum turning radius without user (mm) | 725 | 750 | 735 | 760 |
| Pivot width (mm) | 1140 | 1160 | 1150 | 1180 |
| Static stability downhill (X°) | 18.1 | 17.9 | ||
| Static stability uphill (X°) | 10.8 | 10.1 | ||
| Static stability uphill with anti-tippers (X°) | 11.9 | 11.4 | ||
| Static stability sideways (X°) | 13.3 | 14.3 | ||
| Seat plane angle (X°) | 5 | |||
| Effective Seat Depth (mm) | 430 | 430 | 430 | 430 |
| Nominal Seat Depth (mm) | 420 | 420 | 420 | 420 |
| Effective Seat Width (mm) | 400 | 450 | 400 | 450 |
| Seat Surface Height at Front Edge (mm) | 480 | 480 | 480 | 480 |
| Backrest angle (X°) | eleven | eleven | eleven | eleven |
| Seat to Backrest Angle (X°) | 96 | 96 | 96 | 96 |
| Backrest Height (mm) | 420 | 420 | 420 | 420 |
| Leg to Seat Surface Angle (X°) | 102 | 102 | 102 | 102 |
| Footrest to seat distance (mm) | 360-410 | 360-410 | 360-410 | 360-410 |
| Armrest to seat distance (mm) | 215 | 215 | 215 | 215 |
| Front Location of Armrest Structure (mm) | 310 | 310 | 310 | 310 |
